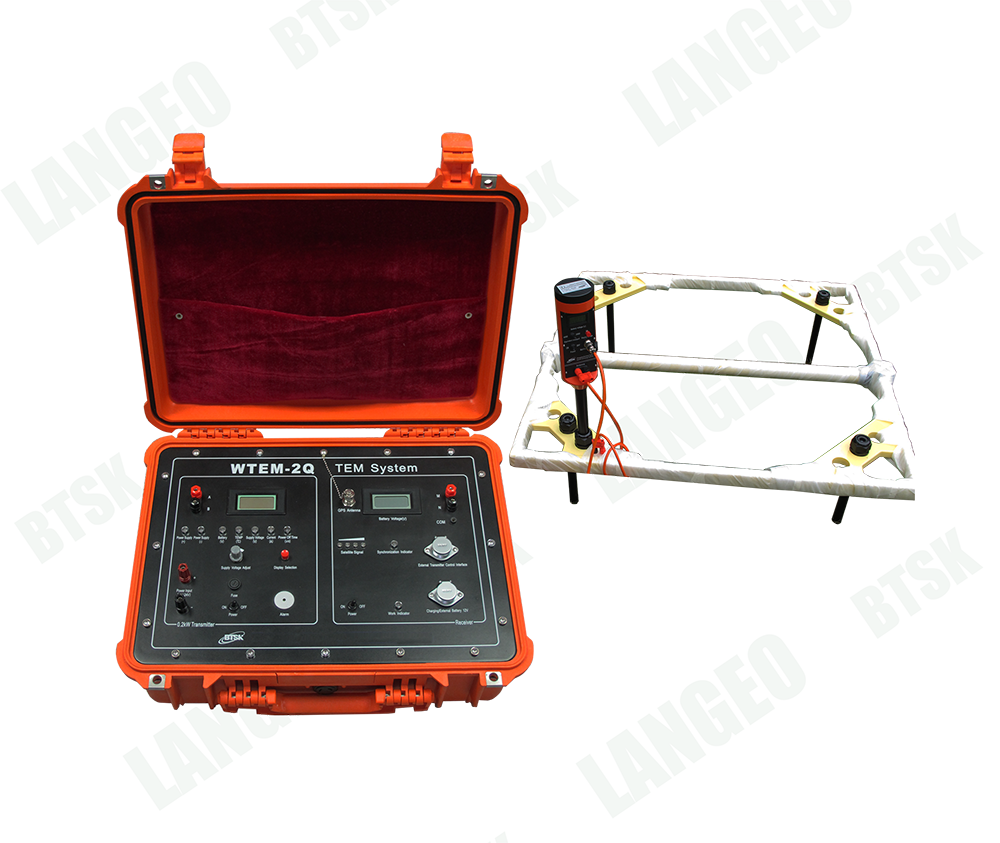

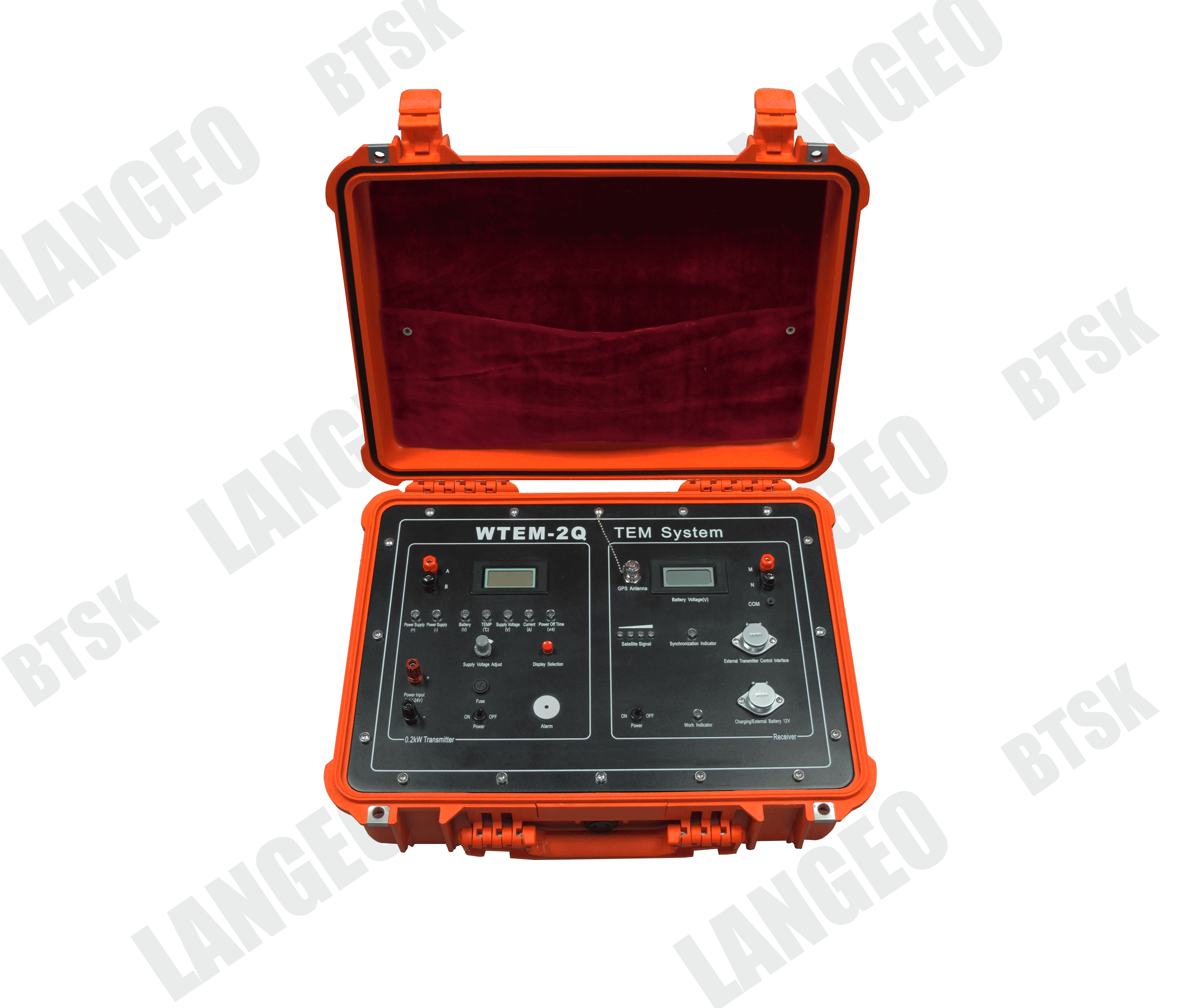

WTEM-2Q Shallow TEM System

This system is one of our latest researchers, with all functions and advantages of domestic and oversea shallow transient electromagnetic survey systems, integrated with WTEM-1J/GPS TEM system receiver and WTEM-1X low-power transmitter. It features high transmitting power, short turn-off time, high reliability, strong anti-interference performance (atmospherics, 50Hz or 60Hz industrial frequency interference), lightweight and low power consumption. According to different geological situations, user could choose an appropriate system to finish surveying tasks of quick general survey, 3D graph coloring up, stereo mapping, deep mine finding and shallow sounding.

Application:

•   Geothermal investigation
•   Metal mine, coalmine
•   Oil and gas field, geothermal field
•   Hydrology investigation
•   Engineering geological prospecting



Main features:

•   One instrument with multiple functions: this system is integrated with functions of a transmitter and a receiver, portable and simple in connection. The receiver alone could synchronize though cable, GPS and thus associated with the external high-power transmitter to fulfill deep exploration.

case

Download

* WTEM-2Q Catalogue
display:none
display:none

Contact us

Email:sales@langeoinstrument.com

Whatsapp:0086 15986731215

•   High reliability, low power consumption: refined receiver and circuitry, reasonable heat dissipating system design, sealed and rugged mechanical structure, ensuring high reliability, low power consumption and convenient operation.
•   Remote control: PDA based Bluetooth wireless communication technology enables it to control the receiver in 10 meters, such as setting parameters, starting measuring, transferring and displaying the measured results.
•   High anti-interference performance: program controls the filter to give accurate power supply frequency; besides, data stacking and software filtration also do good to this performance.
•   Multiple channels, high measurement accuracy: operator could set number of channel, linear or logarithmic; crystal oscillator accomplishes timing, with stable anto enable it to give accurate data.
•   Wide depth range prospecting: this system is equipped with high-power transmitter which could reach in meters to thousands of meters (deep exploration)
•   Friendly and powerful control interface: PDA controls and collects data from human-machine interface, such as parameters input, data display or storage, graph plotting, etc, simplifying fieldwork.
•   Short turn-off time: transmitter supports swift turn-off function, able to extend shallow exploration range. Short turn-off function provides software with accurate turn-off time




Technical specification:


Receiving
Number of channel   1
Pre-amplification gain 8, 32 times
Main amplification gain 1, 2, 4, 8, 16, 32, 64, 128 times
Band-pass 0~50k Hz (linear phased filter), full band-pass 0~400k Hz
Suppression ≥80dB
A/D 16bit
Min sampling interval 1μs
Crystal oscillation frequency error ≤5×10-9
Trace number ≤128
Stacking times 1~9999 time
Synchronization mode cable, GPS, GPS+Quartz clock
Power source Built-in 12V rechargeable battery lasting for over 10 hours.
Pocket PC pocket PC 2003 system, 320*240 true color, 64MB Flash Rom/ 64MB SDRAM, 64MB CF card, able to store over 100,000 groups of sampled data.
Ports Bluetooth, infrared and serial

Transmitting

Transmitting voltage input 12V, 24V
Transmitting voltage 5.5V~ 8V (transmitting voltage input 12V), adjustable;
or 5.5V~20V (transmitting voltage input 24V), adjustable
Transmitting current        ≤10A
Current precision          ±1%
Power supply frequencies 4 Hz, 8 Hz, 16 Hz, 32 Hz
Transmitting waveform +ON, OFF, -ON, OFF, equal width and dual polarity
Turn-off time range 1μs ~ 100.0μs
Turn-off time ≤2.5μs (when transmitting current is 3A), transmitting coil is single-turn 40m×40m
Transmitting coil 5m * 5m single turn ~ 100m * 100m single turn
Programmable damping resistance 50Ω ~ 1600Ω, 50Ω step programmable
Synchronization mode external synchronization (cable)

Other

Battery recharging charging voltage 12V, charging current ≤1.5A, for no more than 6 hours (automatically monitored)
Dimension 486mm * 392mm * 192 mm
Storage temperature -20°C ~ +70°C
Weight 11.2kg
Working temperature -10°C ~ +50°C



Applications:

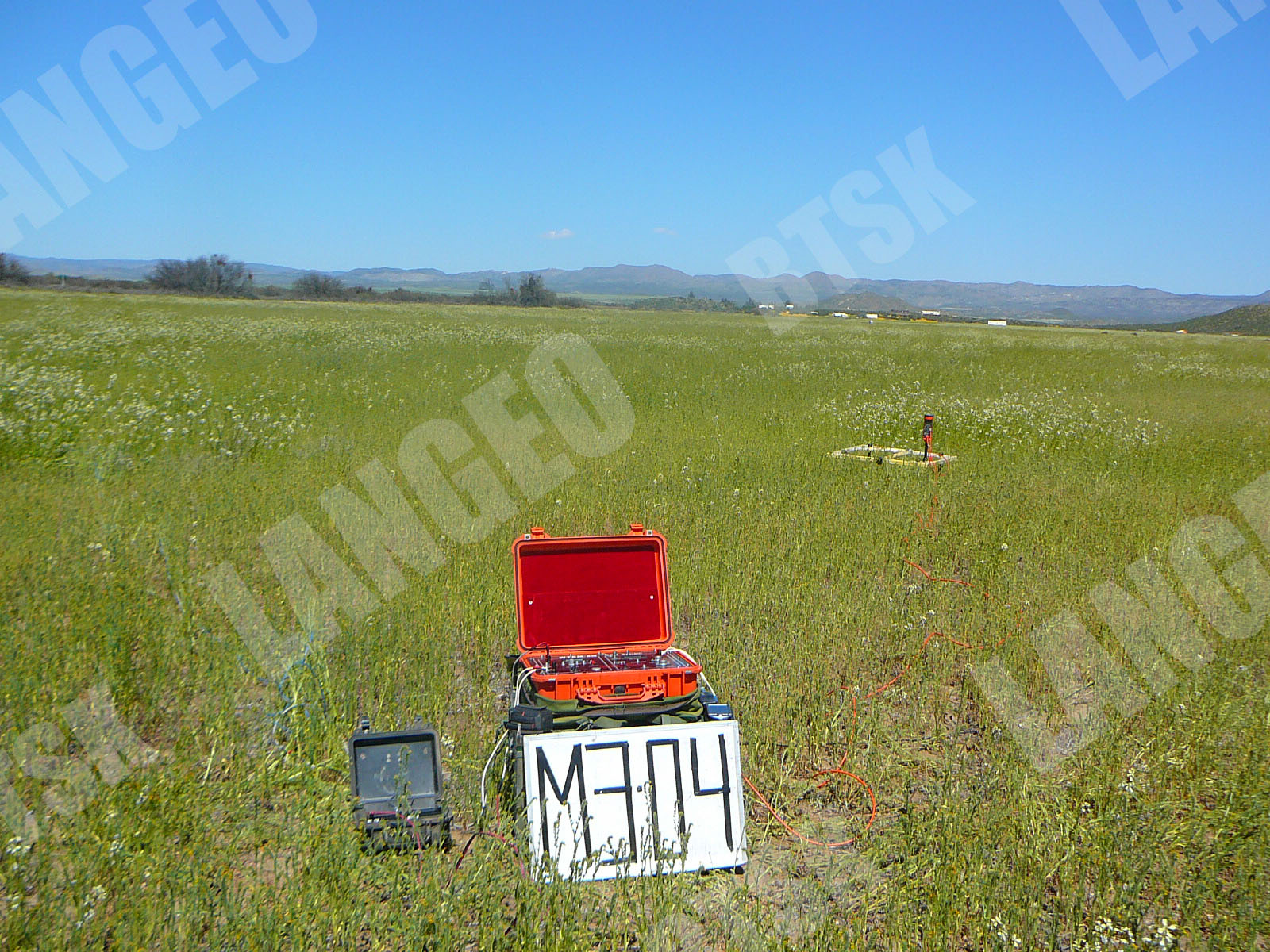

WTEM-2Q transient electromagnetic system for geothermal investigation

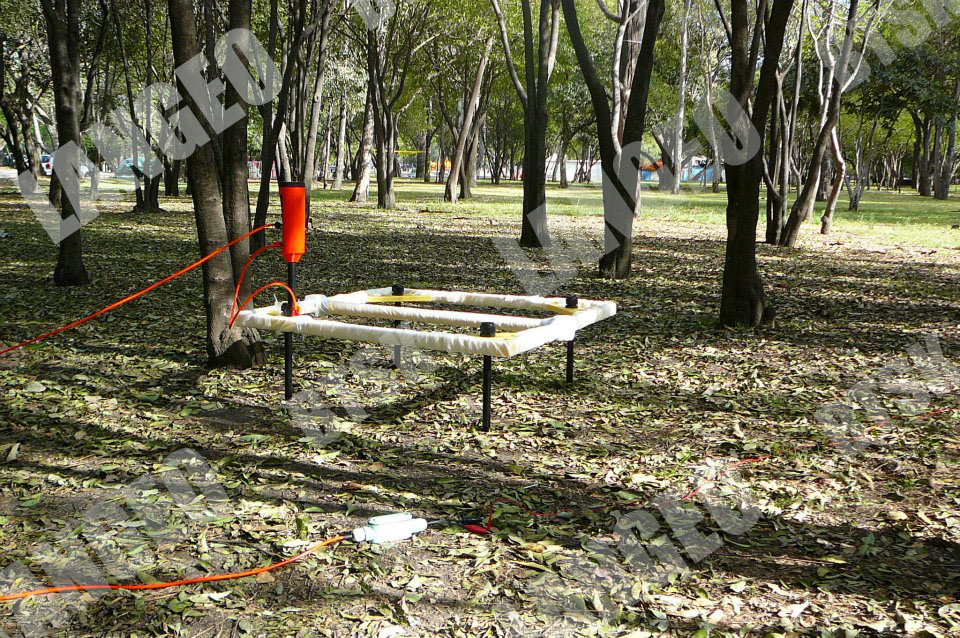

             TD EM systemtransient electromagnetic system for groundwater investigation
TEM apparent resistivity pseudosection of a dam foundation in Yunan   Transient electromagnetic system in Mexico
